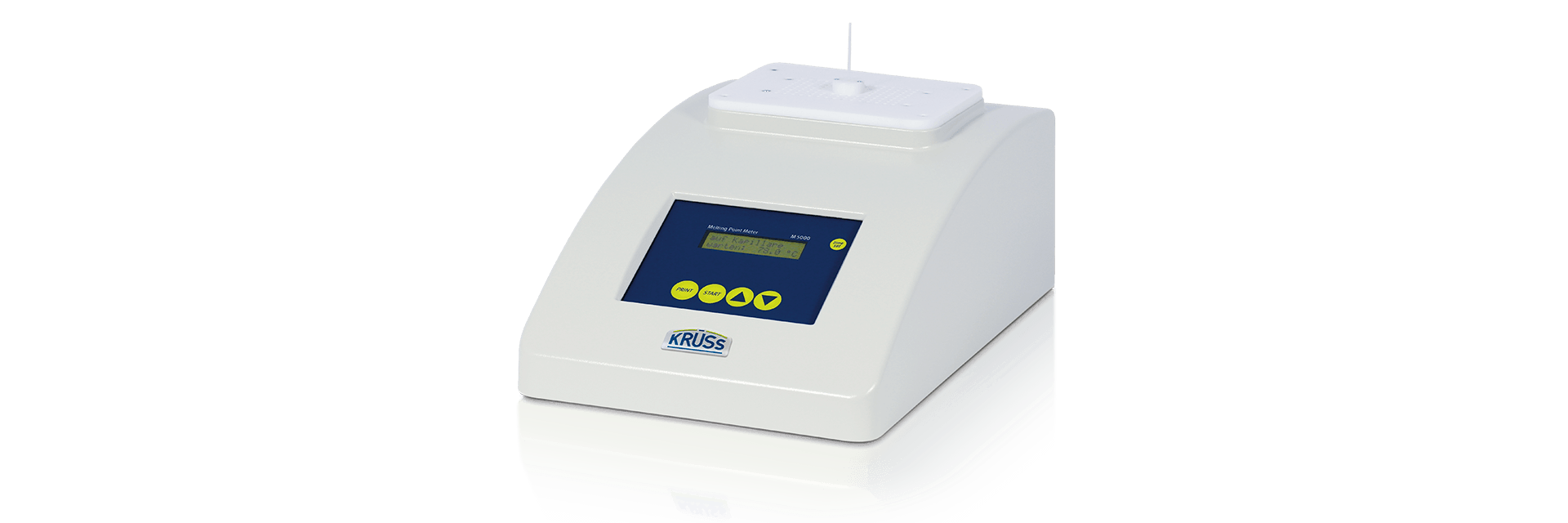

Fully automatic measurements
The M5000 provides fast, easy and automatic examination of powdery substances with a melting point up to 400 °C. Due to the automatic determination of the melting point, an objective measurement result is always guaranteed. The high preheating rate and the integrated fan cooling allow fast and reliable measurements in any temperature range. The display provides a well-arranged readout of all important measuring data.
Your advantages
- Fully automatic measurement
- 1 capillary intake
- LCD display
- Alarm signal when reaching the melting point
- Fast cooling through integrated fan
- Digital display of all important data
- Display in German or English
- With RS-232 interface for printer CBM910
- Easy-to-clean membrane keypad
- Includes protective cover and 100 capillaries
- Small sample volume
Model specifications
| M5000 | |
|---|---|
| MEASUREMENT RANGE | 25–400 °C |
| MEASUREMENT ACCURACY | ±0.3 °C (25–200 °C) ±0.5 °C (200–400 °C) |
| RESOLUTION | 0.1 °C |
| PREHEATING RATE | To 200 °C approx. 4.0 min To 300 °C approx. 9.0 min |
| HEATING RATE | 1 °C min-1 |
| NO. OF CAPILLARIES | 1 |
| CAPILLARY Ø | 1.4 mm |
| INTERFACE | RS-232 |
| IP CODE | IP20 |
| POWER SUPPLY | 90–264 V |
| DIMENSIONS (W X H X D) | 220 mm x 150 mm x 340 mm |
| WEIGHT | 4.1 kg |
The advantages of automatic and semi-automatic measurement
The determination of melting point is a fundamental technique in sample analysis, yielding essential information on material composition and purity. It is also a technique which it is possible to complete, without specialist equipment.
Why then, should one invest in an automated melting point meter? While it is possible to manually heat a sample and observe it, perhaps through a microscope, to determine melting point, this is a cumbersome and unreliable approach. The modern melting point meter is faster and more accurate, providing reproducible results which do not rely on the skill of the individual operator and which can be printed for a permanent record. Digital control means that the sample is heated, the melting point recorded, and the apparatus cooled ready for the next sample is just a few minutes, without operator intervention. Sample sizes are small, being just enough powdered material to fill a small capillary tube, and the output reading is accurate to within 0.3 – 0.5C with good reproducibility.
