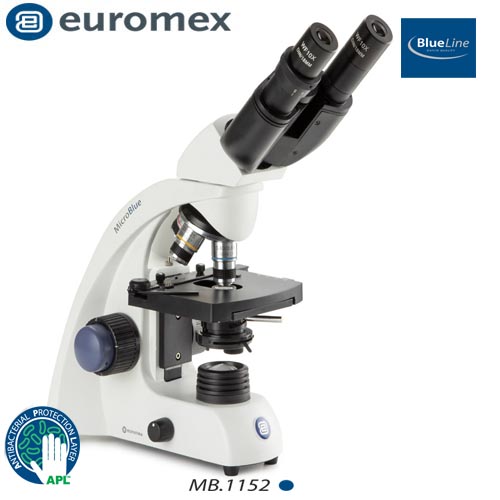

Binocular Microscope MB.1152 4/10/S40x/S100x objectives, Euromex Netherlands

Binocular Microscope MB.1152 4/10/S40x/S100x objectives, Euromex Netherlands

HIGHLIGHTS-

• Entry-level microscopes

• Monocular, binocular and trinocular models

• Digital and LCD models

• Provided with APL (Anti-bacterial Protection Layer)

• Revolving reversed nosepiece

• Integrated X-Y mechanical stage

• LED and NeoLED™ illumination

• Cordless operation

• Ergonomic carrying grip

Two years warranty

TECHNICAL SPECIFICATIONS:

• Wide field WF 10x/18 mm eyepiece(s)

• Secured and with a pointer for monocular versions

HEAD

• Monocular models with 45° inclined tubes

• Binocular models have 45° inclined tubes, the adjustable interpupillary distance between 48 and 75 mm, and a ± 5 diopter adjustment on the left tube

• Trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube • The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image

• Two digital heads are available: An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera, 1272 x 952 pixels An integrated 5.0 MP 1/2” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels

• LCD version with 5.6” LCD screen

• All heads are 360° rotatable and secured except for the LCD head, which is secured fixed NOSEPIECE Revolving nosepiece for 3 or 4 reversed objectives on ball bearings

OBJECTIVES

• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65. Models with S60X or S100x oil immersion are also available

• The S40x, S60x, and S100x oil immersion objectives are spring-loaded

APL (ANTI-BACTERIAL PROTECTION LAYER)

APL is a revolutionary paint treatment applied to the most critical parts of our products. A microscope with APL will restrict the growth of micro-organisms, including bacteria and mold

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm

• Supplied with an adjustable rack stop to prevent damage to sample and objectives

• The coarse adjustments are equipped with friction control

STAGE

All models are supplied with 115 x 100 mm stage with an integrated 55 x 20 mm X-Y mechanical stage, except for the basic model MB.1001 which is supplied with a 105 x 105 mm stage and two non-removable clamps

CONDENSER

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder, except for the MB.1001 model and MB.1001-LCD models which are equipped with a single N.A. 0.65 condenser with built-in iris diaphragm

ILLUMINATON

• All monocular versions are supplied with an adjustable 1W LED illumination

• The binocular and trinocular versions are supplied with a replaceable 1 W NeoLED™ illumination system for increased light output

• All models have internal rechargeable batteries with an external 100-240 V battery charger/mains adapter
