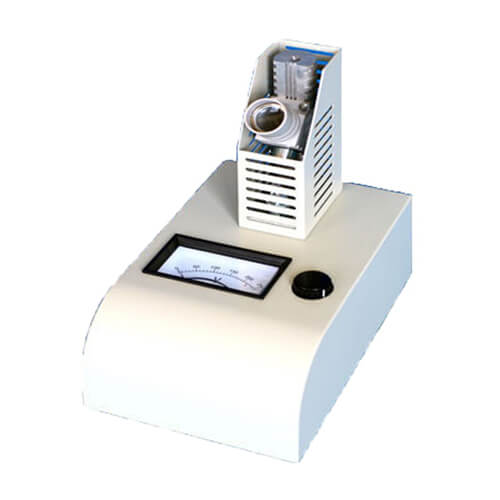

Melting Point Apparatus Model: RY-1
- The melting point is the temperature of something turning into liquid from a solid. Testing it is the main method to detect some characters such as purity etc.
- RY series are suitable for testing Melting points of drug, spice, dye, etc.
Applicable standard
- Corporate standard(Thickness tester) Q/12XQ0185-2010
Features:
- Test temperature with a standard mercury thermometer.
- Adjust heating voltage by a knob.
- Display voltage with an analog voltmeter.
- Observe the Melting sample with a magnifier.
- Test three samples at once.
Specifications:
| Range of melting point | (50~300)℃ |
| Accuracy | ±1.0℃ |
| Usage temperature | (15~35)℃ |
| Rate | (1.0,2.0,4.0,6.0)℃/min |
| Power of the heater | 100W |
| Power | 220V/ 50Hz/ 100W |
| Dimension | 190 x 120 x 200)mm³ |
